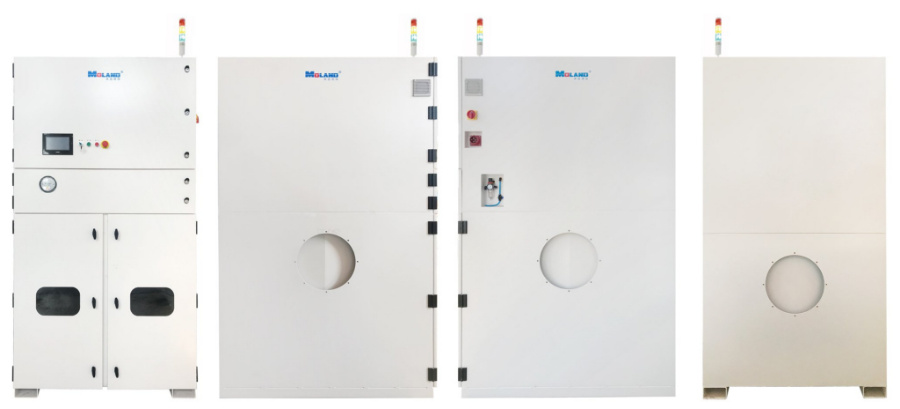

Centralized Industrial Air Purification System

  • Centralized Industrial Air Purification System
  • Centralized Industrial Air Purification System
  • Centralized Industrial Air Purification System
  • Centralized Industrial Air Purification System

Centralized Industrial Air Purification System

    Payment Type: L/C,T/T,D/P,Paypal
    Terms of Trade: FOB,CFR,CIF,EXW,CIP
    Min. Order: 1 Bag/Bags
    Delivery Time: 15 Days
    Packaging: Box
    Productivity: 100sets/Month
    Brand: Moland
    Transportation: Ocean,Land
    Place of Origin: Jinan City, Shandong Province, China
    Supply Ability: 100sets/Month
    Certificate: CE, ISO9001,ISO14001
    HS Code: 8421399090
    Port: Qingdao

Basic Info

Model No.: MLWF500-9T

Product Description

Centralized dust removal equipment:

Through the gravitational action of the fan, the welding fume exhaust gas is sucked into the air inlet of the equipment through the universal dust collecting cover. The flame arrester is set at the air inlet of the equipment. The spark is trapped by the flame arrester, and the smoke gas enters the settling chamber, and the gravity and upward airflow are utilized.

Firstly, the coarse dust is directly lowered to the ash hopper, and the fine dust is captured on the outer surface by the filter element;
After being filtered and purified by the filter element, the clean gas flows into the clean room from the center of the filter element, and the clean air is further purified by the activated carbon filter, and then discharged through the air outlet to meet the standard.

Dust purifier
· Suitable for: welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and cutting materials to produce

Performance description
·Integral structure, beautiful appearance, small area
· Anti-suction device, make the effect of cleaning more thorough
· Power supply condition monitoring: alarm for broken phase overvoltage and undervoltage to prevent motor and electrical components from damage
· Pneumatic condition monitoring: alarm of low pressure of gas source to prevent incomplete ash cleaning, differential gauge to visually show the use status of filter element, automatic pulse back blowing of high pressure difference
· Operation temperature monitoring: alarm system temperature is too high to prevent fire

Standard Configuration

·Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault Phase Protection, Overload Protection, Air Pressure Monitoring and Temperature Monitoring Devices
· PLC Intelligent Control System
· Tricolor lamp
· Differential pressure gauge
· Observation window
· Spark trap (large particle dust pre-filter)

Spare parts

· Frequency conversion system
· IO port (remote control)
· Explosion proof configuration
· Universal Flexible Arm
· Suction duct
· Ash bucket

Recommended working condition
· Welding workstation
· Artificial Welding Station
· Plasma cutting and laser cutting
· Continuous working condition with large workload

Model MLWF280S MLWF300A MLWF350 MLWF400
Power 2.2kw 2.2kw 3.0kw 3.0kw
Voltage 220/380/415V 50Hz
Air Volume 2500-2800m³/h 2800-3200m³/h 3000-3500m³/h 3500-4500m³/h
Accuracy 0.3μm
Filter material PTFE Cartridge Filter
Filter Area 10m² 20m² 20m² 40m²
Filter Size ∅325*660mm (1 branches) ∅325*660mm (2 branches) ∅325*660mm (2 branches) ∅325*660mm (4 branches)
Cleaning Automatic Dedusting
Noise 75dBA
Size 630×650×1760mm 840×800×1850mm 840×800×1850mm 960×985×2080mm
Weight 230kg 300kg 310kg 320kg

Model MLWF500-6T MLWF500-9T MLWF800 MLWF800-Ash Bucket
Power 5.5kw 5.5kw 7.5kw 7.5kw
Voltage 220/380/415V 50Hz
Air Volume 5000-7000m³/h 5000-7000m³/h 7000-10500m³/h 7000-10500m³/h
Accuracy 0.3μm
Filter material PTFE Cartridge Filter
Filter Area 60m² 90m² 108m² 108m²
Filter Size ∅325*660mm (6 branches) ∅325*660mm (9 branches) ∅325*860mm (9 branches) ∅325*860mm (9 branches)
Cleaning Automatic Dedusting
Noise 75dBA
Size 1240×1130×2200mm 1240×1470×2200mm 1240×1470×2400mm 1240×1470×2960mm
Weight 660kg 800kg 980kg 980kg
